STRAATEN International

HOME APPLIANCES

STRAATEN

STRAATEN
Built-in Hob SP630SV
(Stainless Steel with Safety Device)

Dimensions (mm)
W590 x D500 x H30
(Cut Out W570 x D480)

Features
• 3 Gas Burners
• Instant Auto-Ignition
• Enamelled Pan Support in 2 Sections with Rubber Feet
• Heavy Gauge Matt Enamelled Burner Caps
• Heat Resistant Knobs
• 1 HIGH-ENERGY Triple Ring Burner
• Direct Electric Ignition
• Flame Failure Device
• AISI 304 Stainless Steel Body

STRAATEN
Built-in Hob SP930SV
(Stainless Steel with Safety Device)

Dimensions (mm)
W860 x D500 x H30
(Cut Out W840 x D480)

Features
• 3 Gas Burners
• Instant Auto-Ignition
• Enamelled Pan Support in 2 Sections with Rubber Feet
• Heavy Gauge Matt Enamelled Burner Caps
• Heat Resistant Knobs
• 1 HIGH-ENERGY Triple Ring Burner
• Direct Electric Ignition
• Flame Failure Device
• AISI 304 Stainless Steel Body

STRAATEN
Built-in Hob
SG85.B2.B86
(Crystal Glass Hob with
Safety Device)
For Export Only!

Dimensions (mm)
W860 x D500 x H55
(Cut Out W805 x D445)

Features
• 2 Gas Large Burners
• Instant Auto-Ignition
• Cast Iron Pan Support
• Heavy Gauge Cast Iron Burner Caps
• Sleek Design Metal Knobs
• 2 Powerful and Safe Wok Burners with 3 Injectors Delivers 4.5KW of Cooking Power
• Inner and Outer Burners Allows Full Control of Wok Burner or Slimmer Burner
• Battery Ignition
• Flame Failure Device
• AG 101 Safety Tempered Glass

STRAATEN
Built-in Hob
SG85.B3.B86
(Crystal Glass Hob with
Safety Device)
For Export Only!

Dimensions (mm)
W860 x D500 x H55
(Cut Out W805 x D445)

Features
• 3 Gas Large Burners
• Instant Auto-Ignition
• Cast Iron Pan Support
• Heavy Gauge Cast Iron Burner Caps
• Sleek Design Metal Knobs
• 3 Powerful and Safe Wok Burners with 3 Injectors Delivers 4.5KW of Cooking Power
• Inner and Outer Burners Allows Full Control of Wok Burner or Slimmer Burner
• Battery Ignition
• Flame Failure Device
• AG 101 Safety Tempered Glass
<< Top

SP630SV
SP630SV_diagram

SP930SV
SP930SV_diagram

SG85_B2_B86
SG85B2B86_diagram

SG85_B3_B86

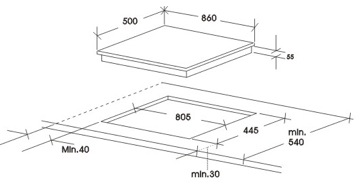

SG85B3B86_diagram
